Research on the Separation Characteristics of Microplastic Particles in Straight-Channel Bionic Microfluidic Chips

XUE Jingtian; HU Xiao; LI Junjie; LIN Yongjie; HUANG Yingjie

doi:10.21656/1000-0887.460120

Volume 47 Issue 3

Mar. 2026

Turn off MathJax

Article Contents

Article Navigation > Applied Mathematics and Mechanics > 2026 > 47(3): 301-312

XUE Jingtian, HU Xiao, LI Junjie, LIN Yongjie, HUANG Yingjie. Research on the Separation Characteristics of Microplastic Particles in Straight-Channel Bionic Microfluidic Chips[J]. Applied Mathematics and Mechanics, 2026, 47(3): 301-312. doi: 10.21656/1000-0887.460120

Citation:

PDF( 5686 KB)

Research on the Separation Characteristics of Microplastic Particles in Straight-Channel Bionic Microfluidic Chips

doi: 10.21656/1000-0887.460120

Zhejiang Key Laboratory of Multiflow and Fluid Machinery, Zhejiang Sci-Tech University, Hangzhou 310018, P.R.China

Received Date: 2025-06-10
Rev Recd Date: 2026-03-02
Publish Date: 2026-03-01

Abstract

Abstract

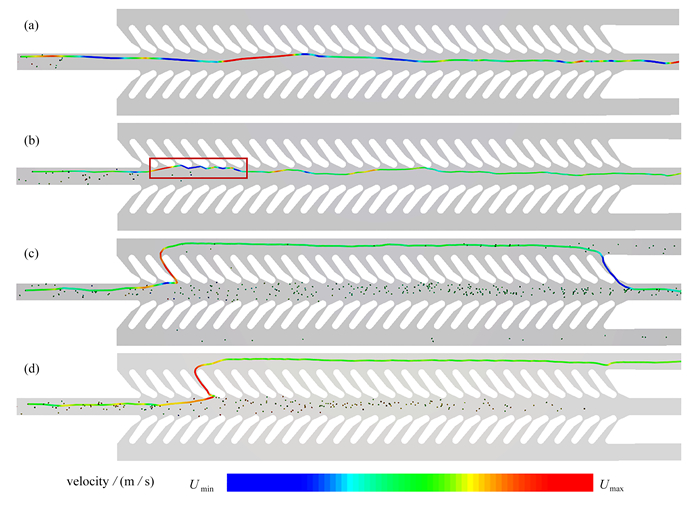

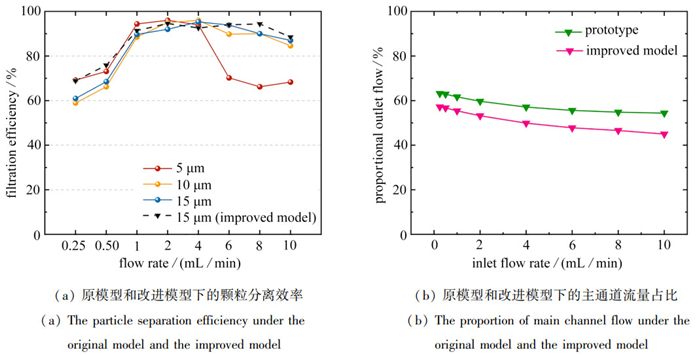

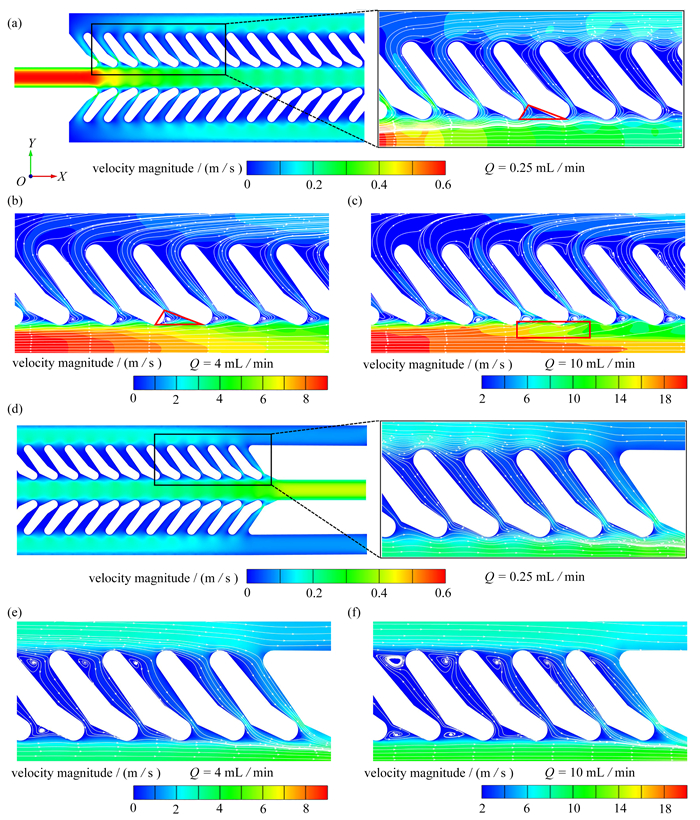

To optimize an efficient biomimetic microfluidic chip for the high-efficiency, high-throughput separation of micron-sized particles such as microplastics, a computational fluid dynamic (CFD) coupled with discrete element method (DEM) numerical approach was employed to systematically investigate the internal flow field and particle separation mechanisms of a biomimetic microfluidic filtration structure. The 4 interesting particle separation mechanisms were summarized: at low Reynolds numbers, particles are separated through inertial focusing effects; at high Reynolds numbers, particles rely on the capture effect of vortices at the leading edge of the valve and the backflow effect between valves at the channel end to form 3 separation mechanisms. Finally, based on the mechanism analysis, the chip structure was optimized by increasing the cross-sectional length of the auxiliary channel, to achieve a maximum improvement of 7.9% in particle separation efficiency, an average reduction of 7.2% in the main channel flow rate, and a maximum increase of 9.4% in the production of clean filtrate. These findings provide a theoretical support for the optimized design of efficient bionic filtration membranes.
- microfluidics,
- bionic structure,
- microplastic particle,
- particle filtration,
- CFD-DEM

(Contributed by HU Xiao, M.AMM Youth Editorial Board)

FullText(HTML)

References(23)

References

[1]	ZURI G, KARANASIOU A, LACORTE S. Human biomonitoring of microplastics and health implications: a review[J]. Environmental Research, 2023, 237: 116966. doi: 10.1016/j.envres.2023.116966
[2]	CABA-FLORES M D, MARTÍNEZ-VALENZUELA C, CÁRDENAS-TUEME M, et al. Micro problems with macro consequences: accumulation of persistent organic pollutants and microplastics in human breast milk and in human milk substitutes[J]. Environmental Science and Pollution Research, 2023, 30(42): 95139-95154. doi: 10.1007/s11356-023-29182-5
[3]	MA J, WU Y, LIU Y, et al. Cell-sorting centrifugal microfluidic chip with a flow rectifier[J]. Lab on a Chip, 2021, 21(11): 2129-2141. doi: 10.1039/D1LC00217A
[4]	XIANG N, LI Q, NI Z. Combining inertial microfluidics with cross-flow filtration for high-fold and high-throughput passive volume reduction[J]. Analytical Chemistry, 2020, 92(9): 6770-6776. doi: 10.1021/acs.analchem.0c01006
[5]	AHMED H, RAMESAN S, LEE L, et al. On-chip generation of vortical flows for microfluidic centrifugation[J]. Small, 2020, 16(9): 1903605. doi: 10.1002/smll.201903605
[6]	DI CARLO D, IRIMIA D, TOMPKINS R G, et al. Continuous inertial focusing, ordering, and separation of particles in microchannels[J]. Proceedings of the National Academy of Sciences of the United States of America, 2007, 104(48): 18892-18897.
[7]	KUMAR T, HARISH A V, ETCHEVERRY S, et al. Lab-in-a-fiber-based integrated particle separation and counting[J]. Lab on a Chip, 2023, 23(9): 2286-2293. doi: 10.1039/D2LC01175A
[8]	ZHANG P, BACHMAN H, OZCELIK A, et al. Acoustic microfluidics[J]. Annual Review of Analytical Chemistry, 2020, 13: 17-43. doi: 10.1146/annurev-anchem-090919-102205
[9]	PAIÈ P, ZANDRINI T, VÁZQUEZ R M, et al. Particle manipulation by optical forces in microfluidic devices[J]. Micromachines, 2018, 9(5): 200.
[10]	DING X, PENG Z, LINS S, et al. Cell separation using tilted-angle standing surface acoustic waves[J]. Proceedings of the National Academy of Sciences of the United States of America, 2014, 111(36): 12992-12997.
[11]	SEGRÉ G, SILBERBERG A. Radial particle displacements in Poiseuille flow of suspensions[J]. Nature, 1961, 189(4760): 209-210. doi: 10.1038/189209a0
[12]	王企鲲, 孙仁. 管流中颗粒"惯性聚集"现象的研究进展及其在微流动中的应用[J]. 力学进展, 2012, 42(6): 692-703. WANG Qikun, SUN Ren. Advances in the research on "inertial focus of particles" and its application in microfluidics[J]. Advances in Mechanics, 2012, 42(6): 692-703. (in Chinese)
[13]	沈洋, 王企鲲, 刘唐京. 剪切稀化流变特性对微通道中颗粒迁移的影响[J]. 应用数学和力学, 2024, 45(5): 637-650. doi: 10.21656/1000-0887.440326 SHEN Yang, WANG Qikun, LIU Tangjing. Effect of shear thinning rheological properties on particle migration in microchannels[J]. Applied Mathematics and Mechanics, 2024, 45(5): 637-650. (in Chinese) doi: 10.21656/1000-0887.440326
[14]	赵可馨, 王企鲲, 柯灵杰. 微通道中流体弹性对颗粒聚集的影响[J]. 应用数学和力学, 2025, 46(10): 1256-1266. doi: 10.21656/1000-0887.450275 ZHAO Kexin, WANG Qikun, KE Lingjie. The influence effect of fluid elasticity on particle aggregation in microchannels[J]. Applied Mathematics and Mechanics, 2025, 46(10): 1256-1266. (in Chinese) doi: 10.21656/1000-0887.450275
[15]	AMINI H, LEE W, DI CARLO D. Inertial microfluidic physics[J]. Lab on a Chip, 2014, 14(15): 2739-2761.
[16]	DI CARLO D, EDD J F, HUMPHRY K J, et al. Particle segregation and dynamics in confined flows[J]. Physical Review Letters, 2009, 102(9): 094503.
[17]	董骅, 黄龙润, 范亮亮, 等. 弧形变截面微通道内颗粒富集的实验研究[J]. 工程热物理学报, 2025, 46(2): 486-490. DONG Hua, HUANG Longrun, FAN Liangliang, et al. Experimental study on particle enrichment in arc-shaped variable cross-section microchannels[J]. Journal of Engineering Thermophysics, 2025, 46(2): 486-490. (in Chinese)
[18]	ZHAO Q, YUAN D, ZHANG J, et al. A review of secondary flow in inertial microfluidics[J]. Micromachines, 2020, 11(5): 461.
[19]	白汉洁, 林智慧, 郭时超, 等. 螺旋通道中稳定增强的二次流构建及其粒子聚焦研究[J]. 分析化学, 2024, 52(4): 504-512. BAI Hanjie, LIN Zhihui, GUO Shichao, et al. Spiral microfluidic for particle focusing by stabilization and acceleration of secondary flow[J]. Chinese Journal of Analytical Chemistry, 2024, 52(4): 504-512. (in Chinese)
[20]	DIVI R V, STROTHER J A, MISTY PAIG-TRAN E W. Manta rays feed using ricochet separation, a novel nonclogging filtration mechanism[J]. Science Advances, 2018, 4(9): eaat9533.
[21]	CLARK A S, SAN-MIGUEL A. A bioinspired, passive microfluidic lobe filtration system[J]. Lab on a Chip, 2021, 21(19): 3762-3774.
[22]	HASHEMI SHAHRAKI Z, NAVIDBAKHSH M, TAYLOR R A. Inertial cell sorting of microparticle-laden flows: an innovative OpenFOAM-based arbitrary Lagrangian-Eulerian numerical approach[J]. Biomicrofluidics, 2021, 15(1): 014111.
[23]	TSUJI Y, TANAKA T, ISHIDA T. Lagrangian numerical simulation of plug flow of cohesionless particles in a horizontal pipe[J]. Powder Technology, 1992, 71(3): 239-250.
